Flood Light


Call our office to order (973) 540-0011, ext 101

  • Illuminates central area of helipad
  • No glare for pilots or passengers
  • Low profile – cannot be struck by helicopter
  • 70 degree wide beam – only 4 fixtures required for most helipads
Download Drawing
SKU: hfl Category: Tag:

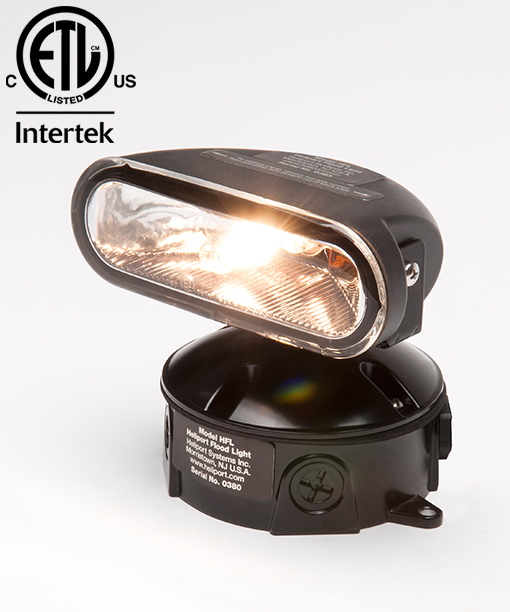

The Heliport Systems floodlight light features a horizontal cut-off so that there is no glare for the pilots or passengers. It comes with a 75 watt halogen lamp that is equivalent to a 250 watt incandescent bulb, thus saving electricity. Further, with its 70 degree wide feild of view, most helipads can be covered with 4 fixtures.

The cast aluminum base serves as a junction box so no additional junction box is required. Further, with 4 half-inch NPT thread conduit entry points, all the wiring can be above ground. However, should you require underground wiring, there is a conduit entry point on the bottom.

An optional 12 inch diameter octagonal grass plate is available.

Additional information

Weight 3 lbs
Dimensions 7 × 7 × 7 in
